What are payment rails? A guide to types and trade-offs

A customer disputes a €4000 payment. If it arrived on a card, you have an evidence process, a scheme timetable, and months of exposure. If it arrived on SEPA⁠ Instant, the money is final, there is no scheme to appeal to, and a dispute becomes your support team's job. Same amount, same day, entirely different cost.

That difference is set by the payment rail. 7 families cover almost everything running in production today, and they differ far more in what they make your team do than in how fast they move money.

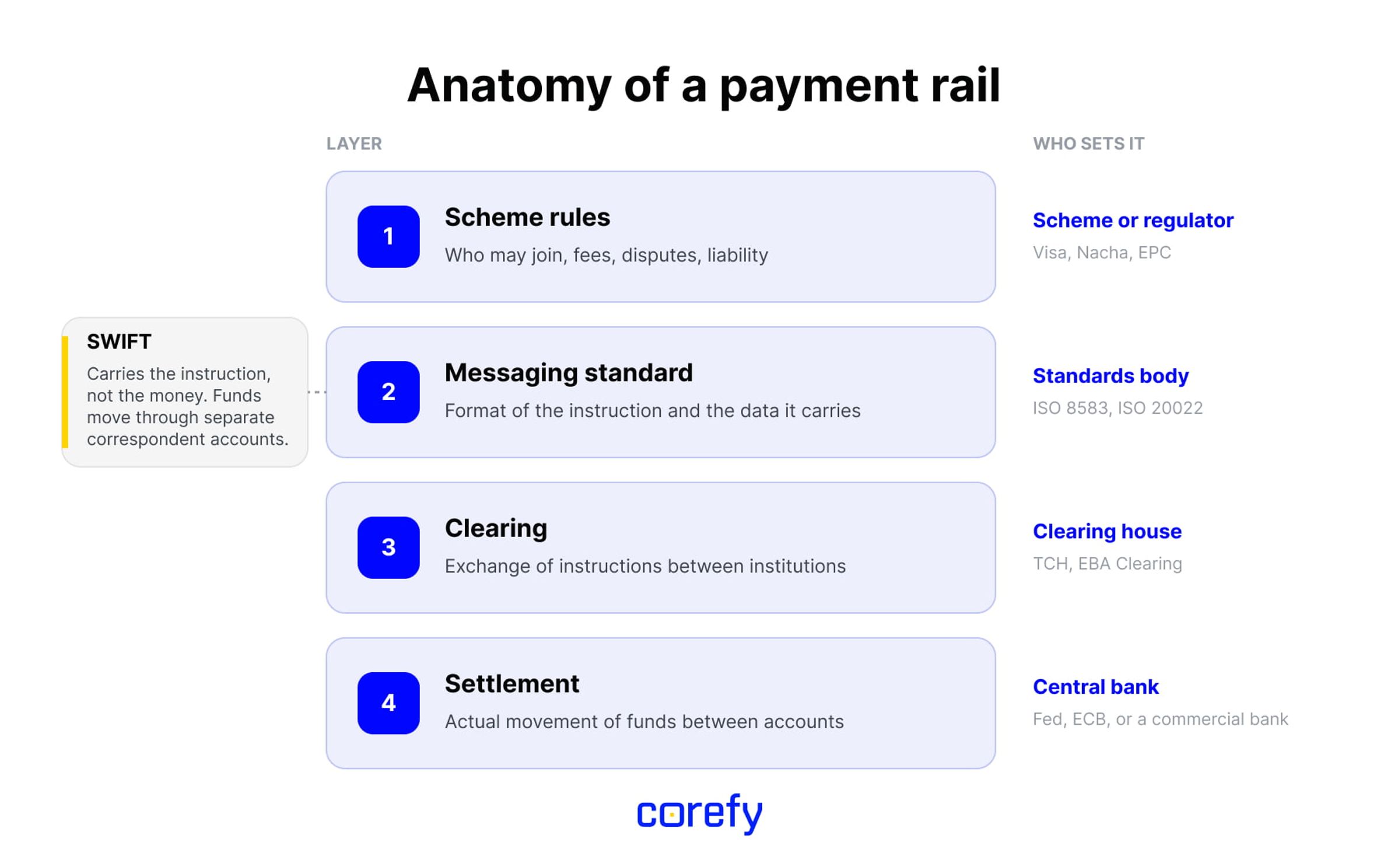

What a payment rail is actually made of

Every rail stack has 4 layers, and knowing which layer is causing a problem is the fastest route to fixing it.

• Scheme rules. These define who may join, what they may charge, how disputes are resolved, and who is liable when a payment fails or is disputed. This layer drives your commercial and legal exposure, and it varies far more between rails than the underlying technology does.
• Messaging standard. The format of the instruction itself. Cards run on ISO 8583. Most bank rails have moved to ISO 20022. The standard sets how much context travels alongside the money, which determines whether reconciliation is automatic or manual.
• Clearing. The exchange of instructions between institutions and, where the scheme nets, the calculation of what each owes the other. Batch rails clear in cycles. Instant rails clear transaction by transaction.
• Settlement. The actual movement of funds between accounts held at a central bank or a commercial bank. Settlement timing decides when the money becomes usable, which makes it a treasury question rather than a technical one.

The 7 types of payment rails

The families below are grouped by how they behave operationally rather than by technology, because that is what determines the work your team takes on when you add one.

• Batch bank rails. Automated Clearing House (ACH)⁠ in the United States, SEPA Credit Transfer and Direct Debit in Europe, Bacs in the United Kingdom. Cheap, high-capacity and cycle-based.
• Card networks. Visa, Mastercard, American Express, Discover and domestic schemes such as Cartes Bancaires. Widest reach, strongest consumer protection, highest and most variable cost. Most digital wallets sit on top of card rails instead of replacing them, which is why Worldpay counts card-funded wallet transactions as wallet volume and reports⁠ digital wallets at 56% of global e-commerce transaction value in 2025 — a figure that describes where the checkout button sits, not where the money travels.
• High-value and cross-border bank rails. Fedwire, CHIPS, T2 and CHAPS provide real-time gross settlement (RTGS) with finality for treasury and large business-to-business movements. Correspondent banking, coordinated over SWIFT messaging, extends the same logic across borders through chains of nostro and vostro accounts. Expensive per transaction, which is immaterial at the values involved, and opaque on end-to-end fees, which is not.
• Real-time account-to-account (A2A) rails. FedNow and RTP in the US, SEPA Instant across the euro area, Faster Payments in the UK, Pix in Brazil, UPI in India. Adoption is now broad enough to change market defaults: more than 70 countries operate⁠ a real-time scheme.
• Wallet and overlay rails. PayPal, Alipay, WeChat Pay, Cash App and regional superapps. Some hold a stored balance and settle internally, others pass through to a card or bank rail. The distinction matters commercially: a pass-through wallet inherits the dispute rules of whatever funds it, while a stored-balance wallet applies its own.
• Local payment method rails. iDEAL, Blik, Boleto, Konbini, PayNow, Trustly. Technically, most are overlays on a domestic bank rail, and a few operate as wallets. They form a separate family because the decision they represent is different: adding one is a market-entry commitment made per country, with its own scheme contract, redirect flow, settlement account, and local support burden, and it delivers value in exactly one market. Every other family on this list is a platform-level decision that applies everywhere you operate.
• Blockchain and stablecoin rails. Public chains carrying tokenized dollars and euros, used to move value between entities and across borders instead of accepting payments at checkout. The on-chain transfer itself settles quickly, and the network fee is negligible at the values these rails are used for. The cost and the delay sit at either end, where local currency is converted into stablecoin and back again: each conversion runs through a regulated exchange or broker, with a spread and compliance checks attached. A rail that is fast in the middle still takes days end to end, so judge these on the quality of your on-ramp and off-ramp in each corridor, not on the chain.

5 properties that separate one payment rail from another

Speed dominates rail marketing and rarely decides rail selection. These 5 properties do, and each one converts directly into work for a payment team.

1. Finality and reversibility

Instant rails are irrevocable by design. Once funds land, there is no scheme mechanism to pull them back, so a refund is a fresh payment instead of a reversal, and disputes move from the scheme to your own operations. Cards work the opposite way, holding transactions open to chargeback for months. The operational consequence is that refund and dispute logic will not be written once and reused across rails: each family needs its own flow, its own evidence handling, and its own reserve policy. This is the single most underestimated cost of adding a rail.

2. Settlement timing and liquidity

Batch rails settle in predictable end-of-day cycles, which lets treasury fund positions once a day. Real-time rails run continuously and require pre-funded balances that never sleep, turning liquidity management into a monitoring function. For a merchant, this shows up as a funding calendar that no longer matches the payout calendar. For a payment business, it shows up as capital tied up in settlement accounts across every scheme it joins.

3. Data richness

Two rails both running ISO 20022 still carry very different amounts of context, and the gap is wide enough to break reconciliation. SEPA Instant Credit Transfer allows⁠ up to 140 characters of unstructured remittance information per payment. Rails built to the High Value Payment Systems Plus guidelines support⁠ up to 9,000 characters of structured remittance data. Straight-through reconciliation built on a structured, high-capacity rail will not port to a 140-character one, and the fallback is manual matching by an operations team that grows with volume.

4. Limits

Scheme caps are moving quickly as instant rails are pulled into corporate use. FedNow raised⁠ its network transaction limit from $1 million to $10 million. Scheme caps are the ceiling, not the reality: participating banks set their own, often far lower, so validate limits per bank instead of per scheme before committing a use case to a rail.

5. Liability

Fraud liability sits in the scheme rules, and it differs sharply. In the UK, the Payment Systems Regulator has required⁠ reimbursement of authorized push payment scam victims up to £85,000 per claim since October 2024, with the cost split 50/50 between sending and receiving providers, across both Faster Payments and CHAPS. Card rails place the loss with the merchant through chargebacks. Blockchain rails place it entirely with the sender. Whichever rail you add, the fraud budget moves with it, and it arrives alongside a hard operational constraint: SEPA Instant requires end-to-end processing within 10 seconds, so balance checks, limit enforcement, fraud scoring, sanctions screening and notification all complete inside that window.

Matching payment rails to use cases

Rail selection becomes straightforward once the use case names the property that matters most. The table below is the shortcut version; the reasoning underneath it is what makes it defensible in a room with your CFO.

Three rules cover most of the edge cases.

• Refund on the rail that took the payment. Any other route creates a reconciliation exception, and it raises an anti-money-laundering question you will have to answer.
• Do not assume payouts and collections belong on the same rail. Collection optimizes for conversion and dispute protection. Payout optimizes for speed and cost. Those rarely point to the same place.
• In markets where cards underperform, the local method is not optional. Where a domestic rail has become the default way people pay, card-only checkout fails at the point of payment rather than earlier in the funnel, so the loss shows up as abandoned baskets you have already paid to acquire.

4 ways to integrate payment rails

The integration model you choose shapes your cost base for years, and it is a more consequential decision than the rails themselves.

Direct to a scheme or sponsor bank

You join the scheme, or connect through a sponsoring institution, and take on certification, settlement accounts, scheme release cycles and compliance reporting. Control is total: routing, data handling and cost structure are yours. So is the timeline, typically months for a first rail and longer where a license or sponsorship is a prerequisite. This is the right model when a rail is central to your product economics, and you process enough volume for the fixed cost to disappear into the unit cost.

Via a PSP or acquirer

Fastest route to a live payment in a single market. You inherit the provider's rail coverage, their settlement timing and their liability model, and you give up independent routing. The constraint appears later: when the provider underperforms in one market or declines a merchant category, there is no mechanism to move traffic without an integration project.

Via an aggregator or payment rails API

One API, several rails, normalized request and response formats. This removes duplicated work and is the model most teams reach for second. The trade-off is normalization itself. Rail-specific fields such as mandate references, remittance structures and scheme-level status codes are the fields your reconciliation depends on, and an abstraction that hides them creates a second problem while solving the first. Evaluate any payment rails API on what it exposes, not only on what it simplifies.

Via an orchestration layer

Connectivity plus a control plane: routing rules, cascading, provider management, reconciliation and reporting across every rail in one place. The value is not the connectors alone but the ability to change rail behavior by configuration instead of development.

When direct payment integration is still the better choice

Payment abstraction is not automatically the right answer. For a single-market business running one payment rail through one stable provider, adding an orchestration layer can cost more than it saves. It also introduces another system to operate, monitor, and govern.

💸Explore where orchestration makes sense

Learn more

But abstraction starts to pay off when adding a new rail means changing refund, reconciliation, or reporting logic in several places, or when switching providers becomes a development project in its own right.

Below that threshold, direct payment integration is often simpler and more cost-effective. Above it, the complexity and maintenance cost of every additional rail begin to compound.

That is the problem Corefy is designed to solve, and it fits a specific profile: teams running more than one rail, in more than one market, where every new provider currently goes into the engineering backlog.

For those teams, the platform changes what it costs to add a new rail. Routing & cascading⁠, refunds, and reconciliation sit in one control plane, so the refund logic, the matching rules, and the reports you already own are written once and apply to every rail behind them. Your payment team can switch on a market or a local payment method themselves, and dropping a provider that underperforms takes days instead of a release cycle.

Key takeaways

• A payment rail is the infrastructure that moves money. Its scheme rules, messaging standard, clearing process and settlement model determine how payments behave operationally.
• Speed is a poor way to choose a payment rail. Finality, settlement timing, data richness, transaction limits and liability drive cost and operational complexity far harder.
• Different use cases call for different rails. Cards hold consumer checkout on reach and dispute protection, real-time A2A rails win on payouts and transfers, and batch rails stay the cheapest option for recurring, high-volume collection.
• Adding a rail rewrites the processes around payment acceptance. Refunds, reconciliation, fraud controls, liquidity management, reporting, and dispute handling each need rail-specific logic.
• The right integration model follows scale and complexity. Direct integration gives maximum control, PSPs and aggregators cut implementation effort, and payment orchestration earns its place as the number of providers, rails and markets grows.
• The abstraction layer is not always the right choice. One rail through one stable provider stays simpler and cheaper on direct integration. Orchestration pays off once adding or replacing providers repeatedly creates engineering and operational work.
