PayTech

White label gateway, payment orchestration and financial management technologies. Fully customised to your specifications.

Supports in this guide: Payments | Payouts

Provider website: pay.tech

What you need to do for start processing transactions (brief summary)

Choose account type
Get your credentials (from PayTech)
Connect in Dashboard
Send an API request

Choose account type

PayTech can be connected in different ways (depending on your needs):

If you do H2H card payments (card data sent directly, server-to-server) -> choose H2H Merchant account
If you do redirect payments (Apple Pay, Google Pay, PayID, Open Banking - customer is redirected to a hosted payment page) -> choose Provider account
If you do payouts (card payouts) -> choose Provider account

If you are not sure which one to use, confirm with your Corefy account manager.

Prerequisites: get from PayTech

Get the following values for your PayTech project/account:

API Key -> Corefy field api_key -> example: pk_live_9f2c41ab7d6e4f0b -> used as the Bearer token on every request to PayTech -> where to find: PayTech backoffice / issued by PayTech manager
Signing Key -> Corefy field signing_key -> example: s3cr3tSign1ngK3y -> the secret PayTech uses to sign callbacks; Corefy validates every incoming callback against it -> where to find: PayTech backoffice / issued by PayTech manager
API URL (optional) -> Corefy field api_url -> example: https://engine.pay.tech -> overrides the default production endpoint if PayTech issued you a dedicated one; leave it empty to use the default. It is ignored in test mode, where the sandbox endpoint is always used -> where to find: PayTech backoffice / issued by PayTech manager

The same three values are used for both account types, but each account type is connected separately in the Dashboard.

Payments processing (connect H2H Merchant account, create payment-invoice)

Connect H2H Merchant account in Corefy Dashboard

Step 1 - Open connection form

Open PayTech in the provider directory and press Connect at PayTech Provider Overview page in the New connection section. Choose H2H Merchant account.

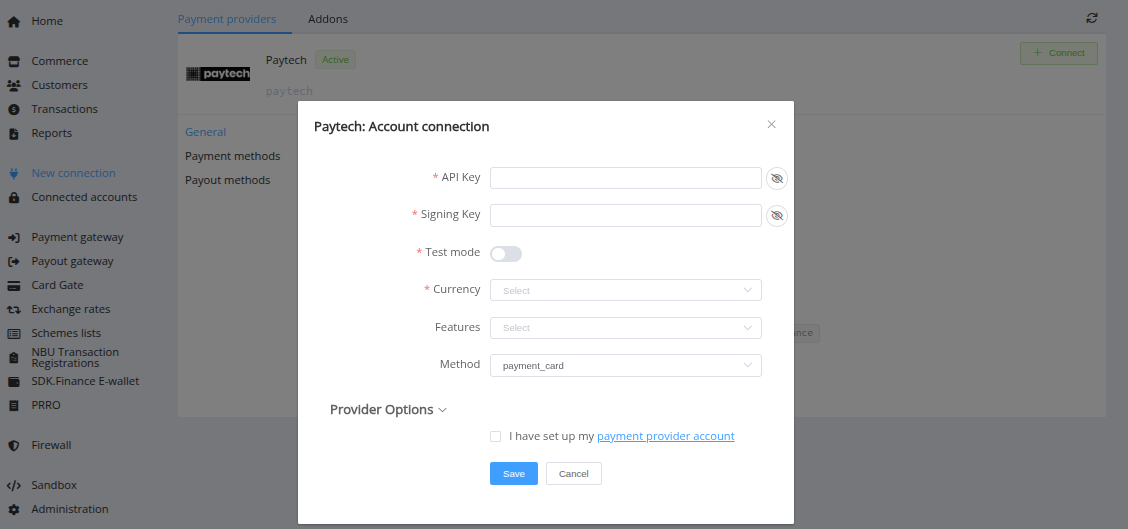

Step 2 - Fill in fields and select settings

API Key -> api_key
Signing Key -> signing_key
API URL -> api_url (optional, leave empty to use the default endpoint)
Test Mode -> (enable if you are using sandbox credentials)

Choose Currency and Features. You can set these parameters according to available currencies and features for your PayTech account, but it is necessary to check details of the connection with your Corefy account manager.

Success

You have connected PayTech H2H Merchant account!

First request to Corefy API (MIN)

What it does: creates a payment-invoice.

Payment - MIN

POST /api/payment-invoices

{
  "data": {
    "type": "payment-invoice",
    "attributes": {
      "service": "payment_card_eur_hpp",
      "currency": "EUR",
      "amount": 10
    }
  }
}

Payment - MAX

POST /api/payment-invoices

{
  "data": {
    "type": "payment-invoice",
    "attributes": {
      "reference_id": "1f2aa3ca-abd8-4741-980d-4017ed30cb8c",
      "service": "payment_card_eur_hpp",
      "currency": "EUR",
      "amount": 10.04,
      "customer": {
        "reference_id": "85af8385-d00e-4f58-ab1f-3a527fdf2d3b",
        "name": "John Doe",
        "email": "johndoe@email.com",
        "phone": "+441234567890",
        "date_of_birth": "2000-02-02",
        "address": {
          "full_address": "123 Baker street",
          "country": "GB",
          "region": "England",
          "city": "London",
          "post_code": "NW16XE"
        },
        "metadata": {
          "locale": "en"
        }
      },
      "test_mode": false
    }
  }
}

None of the customer fields are mandatory - every one of them is sent to PayTech only when present, and can be replaced by a Constant (see below). The payer IP address is added by Corefy automatically, you do not pass it in the request.

Extended request (MAX)

Why add extra fields (typical reasons):

Provide additional customer details for compliance/reconciliation
Positively influence conversion rate
Include optional fields required by your specific flow

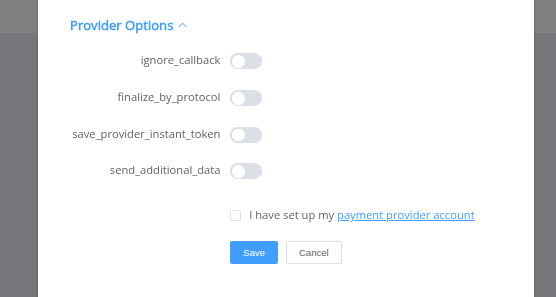

Options

Options are configured on the Corefy side and affect how Corefy builds provider requests or processes responses.

Currently available options (4):

ignore_callback - stops Corefy from finalising transactions by asynchronous callbacks.
finalize_by_protocol - treats a PayTech decline as a final status.
save_provider_instant_token - asks PayTech to return a recurring token.
send_additional_data - sends extra provider-specific data with the payment request.

ignore_callback

What it does: every incoming PayTech callback is rejected, so the transaction status is never changed by a callback. The transaction is finalised only by a status request (Reconciliation).

When to use: enable it for cascading setups, where an early callback would finalise a transaction prematurely and break the cascade.

Default: "false"

Allowed values: true / false

finalize_by_protocol

What it does: when PayTech returns the DECLINED status, Corefy fails the transaction immediately instead of keeping it pending.

When to use: PayTech does not guarantee that a decline is final - in their system it can later change to success. Enable this option if you accept a decline as final; if you do not, leave it disabled and Corefy will stop failing such payments, but you may see status discrepancies with PayTech.

Default: "false"

Allowed values: true / false

save_provider_instant_token

What it does: adds startRecurring to the sale request, so PayTech returns a recurring token that Corefy saves for later instant payments.

When to use: enable it if you plan to use instant/recurring payments.

Default: "false"

Allowed values: true / false

send_additional_data

What it does: adds an additionalParameters object to the payment request, built from metadata [additional_parameters] of your transaction.

When to use: enable it when PayTech asked you to pass extra provider-specific data along with the payment.

Default: "false"

Allowed values: true / false

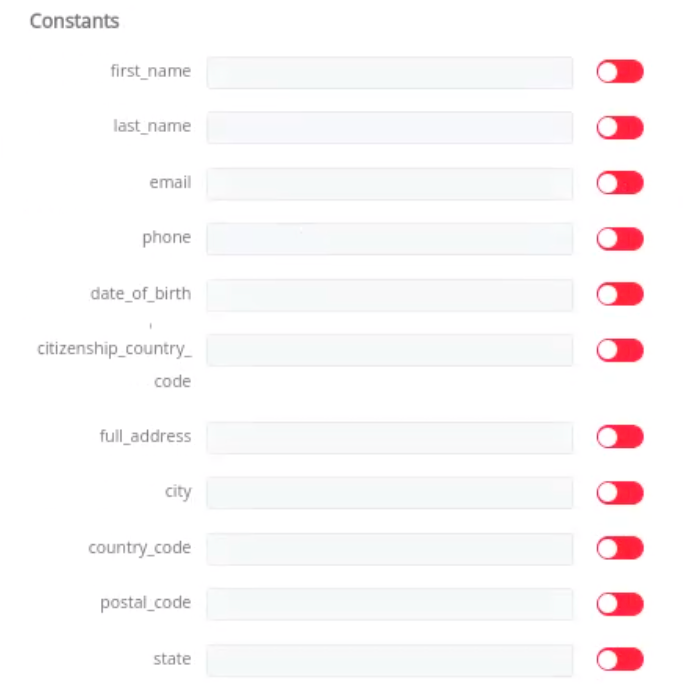

Constants (fallback fields)

Constants are static values that Corefy can send to the provider instead of dynamic data from your API request, when those fields are missing in the request.

So, if a field is missing in the API request, Corefy can take the value from the configured Constants.

After the successful connection, fill in constants for necessary routes in editing menu.

Priority (predictable rule):

If a value is present in the request -> Corefy uses the request value
Else if the constant is set -> Corefy uses the constant
Else -> provider may reject the request or apply its defaults (depends on provider)

Currently available constants (constant -> Corefy API field)

FIRST_NAME -> customer.name (first part of the name)
LAST_NAME -> customer.name (last part of the name)
EMAIL -> customer.email
PHONE -> customer.phone
DATE_OF_BIRTH -> customer.date_of_birth
CITIZENSHIP_COUNTRY_CODE -> customer.address.country
FULL_ADDRESS -> customer.address.full_address
CITY -> customer.address.city
COUNTRY_CODE -> customer.address.country
POSTAL_CODE -> customer.address.post_code
STATE -> customer.address.region

Payments processing (connect Provider account, create payment-invoice)

Connect Provider account in Corefy Dashboard

Step 1 - Open connection form

Open PayTech in the provider directory and press Connect at PayTech Provider Overview page in the New connection section. Choose Provider account.

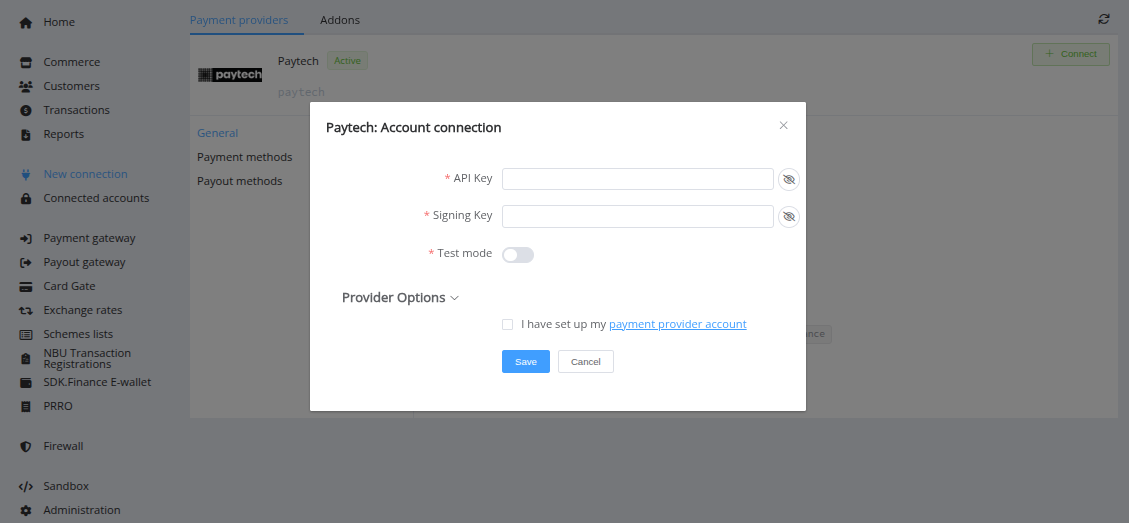

Step 2 - Fill in fields (provider -> Corefy)

API Key -> api_key
Signing Key -> signing_key
API URL -> api_url (optional, leave empty to use the default endpoint)
Test Mode -> (enable if you are using sandbox credentials)

Success

You have connected PayTech Provider account!

First request to Corefy API (MIN)

What it does: creates a payment-invoice. The customer is redirected to the PayTech hosted payment page.

Payment - MIN

POST /api/payment-invoices

{
  "data": {
    "type": "payment-invoice",
    "attributes": {
      "service": "openbanking_eur_hpp",
      "currency": "EUR",
      "amount": 10
    }
  }
}

Other services available on the Provider account use exactly the same request shape, only the service and currency values change: applepay_eur_hpp (Apple Pay, EUR), googlepay_eur_hpp (Google Pay, EUR) and pay_id_aud_hpp (PayID, AUD).

Payment - MAX

POST /api/payment-invoices

{
  "data": {
    "type": "payment-invoice",
    "attributes": {
      "reference_id": "1f2aa3ca-abd8-4741-980d-4017ed30cb8c",
      "service": "openbanking_eur_hpp",
      "currency": "EUR",
      "amount": 10.04,
      "customer": {
        "reference_id": "85af8385-d00e-4f58-ab1f-3a527fdf2d3b",
        "name": "John Doe",
        "email": "johndoe@email.com",
        "phone": "+441234567890",
        "date_of_birth": "2000-02-02",
        "address": {
          "full_address": "123 Baker street",
          "country": "GB",
          "region": "England",
          "city": "London",
          "post_code": "NW16XE"
        },
        "metadata": {
          "ip": "203.0.113.10",
          "locale": "en",
          "website_url": "https://example.com"
        }
      },
      "test_mode": false
    }
  }
}

All customer fields are optional and are sent to PayTech only when present. Three of them come from customer [metadata]: ip is forwarded as the payer IP address, locale sets the language of the hosted payment page, and website_url overrides the shop URL sent to PayTech (by default it is taken from your merchant profile).

Extended request (MAX)

Why add extra fields (typical reasons):

Provide additional customer details for compliance/reconciliation
Positively influence conversion rate
Include optional fields required by your specific flow

Options

Options are configured on the Corefy side and affect how Corefy builds provider requests or processes responses.

Currently available options (1):

finalize_by_protocol - treats a PayTech decline as a final status.

finalize_by_protocol

What it does: when PayTech returns the DECLINED status, Corefy fails the payment immediately instead of keeping it pending.

When to use: PayTech does not guarantee that a decline is final - in their system it can later change to success. Enable this option if you accept a decline as final.

Default: "false"

Allowed values: true / false

Constants (fallback fields)

Constants are static values that Corefy can send to the provider instead of dynamic data from your API request, when those fields are missing in the request.

If a field is missing in the API request, Corefy can take the value from the configured Constants.

Priority (predictable rule):

If a value is present in the request -> Corefy uses the request value
Else if the constant is set -> Corefy uses the constant
Else -> provider may reject the request or apply its defaults (depends on provider)

Currently available constants (constant -> Corefy API field)

FIRST_NAME -> customer.name (first part of the name)
LAST_NAME -> customer.name (last part of the name)
EMAIL -> customer.email
PHONE -> customer.phone
DATE_OF_BIRTH -> customer.date_of_birth
CITIZENSHIP_COUNTRY_CODE -> customer.address.country
FULL_ADDRESS -> customer.address.full_address
CITY -> customer.address.city
COUNTRY_CODE -> customer.address.country
POSTAL_CODE -> customer.address.post_code
STATE -> customer.address.region
LOCALE -> customer.metadata.locale

Note

Constants are available for the applepay_eur_hpp, googlepay_eur_hpp and openbanking_eur_hpp routes. The pay_id_aud_hpp route has no constants - pass the customer data in the request.

Payouts processing (connect Provider account, create payout-invoice)

Connect Provider account in Corefy Dashboard

Payouts use the same Provider account as redirect payments. If you already connected one, no separate connection is required.

Step 1 - Open connection form

Open PayTech in the provider directory and press Connect at PayTech Provider Overview page in the New connection section. Choose Provider account.

Step 2 - Fill in fields (provider -> Corefy)

API Key -> api_key
Signing Key -> signing_key
API URL -> api_url (optional, leave empty to use the default endpoint)
Test Mode -> (enable if you are using sandbox credentials)

Success

You have connected PayTech Provider account!

First request to Corefy API (MIN)

What it does: creates a payout-invoice. One payout route is available: service payment_card_eur, method Card payout, currency EUR.

Payout - MIN

POST /api/payout-invoices

{
  "data": {
    "type": "payout-invoice",
    "attributes": {
      "service": "payment_card_eur",
      "currency": "EUR",
      "amount": 10,
      "fields": {
        "card_number": "411111******1111"
      },
      "context": {
        "card": {
          "card_holder": "John Doe",
          "exp_month": "01",
          "exp_year": "27"
        }
      }
    }
  }
}

The destination card number goes to fields, and the cardholder name and expiry date to context [card]. fields [card_number] is mandatory; without context [card] the cardholder name and expiry date are sent to PayTech empty, and the payout is declined.

Payout - MAX

POST /api/payout-invoices

{
  "data": {
    "type": "payout-invoice",
    "attributes": {
      "reference_id": "3b1c9d52-0f41-47a0-9a1e-6c2f8b5d7e10",
      "service": "payment_card_eur",
      "currency": "EUR",
      "amount": 10,
      "fields": {
        "card_number": "411111******1111"
      },
      "context": {
        "card": {
          "card_holder": "John Doe",
          "exp_month": "01",
          "exp_year": "27"
        }
      },
      "customer": {
        "reference_id": "85af8385-d00e-4f58-ab1f-3a527fdf2d3b",
        "name": "John Doe",
        "email": "johndoe@email.com",
        "phone": "+441234567890",
        "date_of_birth": "2000-02-02",
        "address": {
          "full_address": "123 Baker street",
          "country": "GB",
          "region": "England",
          "city": "London",
          "post_code": "NW16XE"
        },
        "metadata": {
          "ip": "203.0.113.10",
          "locale": "en"
        }
      },
      "test_mode": false
    }
  }
}

customer [metadata] [ip] is forwarded to PayTech as the payer IP address. PayTech asks for it to be sent on card payouts, so include it whenever you have it.

Extended request (MAX)

Why add extra fields (typical reasons):

Provide additional customer details for compliance/reconciliation
Positively influence conversion rate
Include optional fields required by your specific flow

Constants (fallback fields)

Constants are static values that Corefy can send to the provider instead of dynamic data from your API request, when those fields are missing in the request.

If a field is missing in the API request, Corefy can take the value from the configured Constants.

Priority (predictable rule):

If a value is present in the request -> Corefy uses the request value
Else if the constant is set -> Corefy uses the constant
Else -> provider may reject the request or apply its defaults (depends on provider)

Currently available constants (constant -> Corefy API field)

FIRST_NAME -> customer.name (first part of the name)
LAST_NAME -> customer.name (last part of the name)
EMAIL -> customer.email
PHONE -> customer.phone
DATE_OF_BIRTH -> customer.date_of_birth
CITIZENSHIP_COUNTRY_CODE -> customer.address.country
FULL_ADDRESS -> customer.address.full_address
CITY -> customer.address.city
COUNTRY_CODE -> customer.address.country
POSTAL_CODE -> customer.address.post_code
STATE -> customer.address.region

Note

There are no provider options for the payout flow.

Additional info

Callback routing is handled automatically - Corefy generates the callback URL and sends it to PayTech with every request, so nothing has to be set up in the PayTech backoffice.
Every incoming callback is validated against the Signature header, which PayTech calculates from the raw request body using your Signing Key. A wrong or rotated Signing Key makes all callbacks fail validation.
Transaction and payout statuses are additionally pulled from PayTech by reconciliation, so an operation is finalised even if a callback is not delivered.
The H2H Merchant account supports refunds, including partial and multiple refunds of the same transaction.

FAQ / Troubleshooting

Invalid credentials / auth error -> verify the API Key issued for the selected environment; in test mode Corefy always calls the PayTech sandbox, and the api_url value is ignored
Callback signature errors -> check that the Signing Key in Corefy matches the one issued by PayTech, and that the key was not rotated on the PayTech side
Currency or service is not supported -> confirm allowed currencies and features in your PayTech account and in Corefy
Missing customer data fields -> set constants (see "Constants") or provide the fields in the API request
Payout declined right after creation -> check that fields [card_number] and context [card] are both present and that the card is eligible for payouts
Not sure which account type to use? -> ask your Corefy account manager

Question

Still looking for help connecting your PayTech account? Please contact our support team!
